Loaders
GG010T
Ask of price
Weight
2800 kg
Engine type
Yunnei Euro 5
Engine power
25 HP
Maximum Lifting height
4131 mm
Load capacity
1000 kg
Engine model
DEF20NJ4
Bucket capacity
0.4 to 0.5 m³
Turning radius
4600 mm
Check out the offer
Technical Data
Specification
Engine model:
DEF20NJF4
Engine Type:
Yunnei Euro 5 - inline, liquid-cooled, four-cylinder diesel engine
Rated Power:
25 HP
Rated Speed:
2400 rpm
Steering System:
Fully hydraulic
System Pressure:
10 MPa
Brakes:
Four-wheel hydraulic brake
Parking Brake:
Manually operated
Tires:
10-16.5
Wheelbase:
2170 mm
Track:
1285 mm
Working Range
Bucket Capacity:
0.4 ↔︎ 0.5 m³
Bucket Width:
1550 mm
Max. Breakout Force:
28 kN
Rated Load Capacity:
1000 kg
Operating Weight:
2800 kg
Drive:
Four-wheel drive
Minimum Turning Radius:
4600 mm
Maximum Lifting height:
4131 mm
Main Dimensions
Total Length (bucket on the ground):
4600 mm
Total Height:
2400 mm
Total Width:
1550 mm

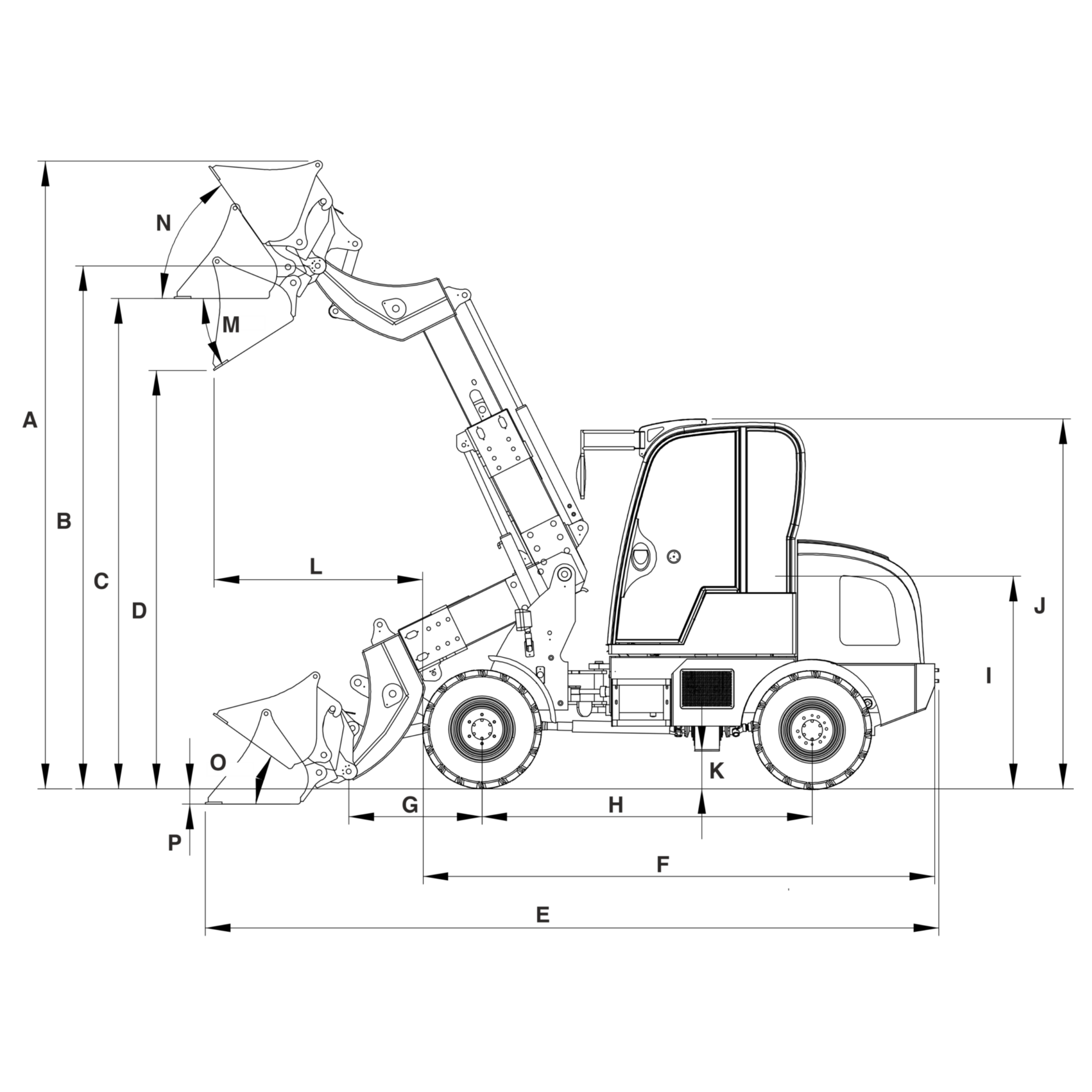

Diagram
| A | Maximum lifting height | 4131 mm |
| B | Lifting height | 3442 mm |
| C | Dump height at maximum lift (bucket hinge pin) | 3227 mm |
| D | Dumping height | 2753 mm |
| E | Overall length with bucket | 4827 mm |
| F | Length from front axle to rear end of chassis | 3367 mm |
| G | Front axle to bucket tip (ground) | 876 mm |
| H | Wheelbase | 2173 mm |
| I | Height to top of rear frame / engine hood | 1399 mm |
| J | Overall height | 2400 mm |
| K | Ground clearance | 248 mm |
| L | Maximum forward reach | 1372 mm |
| M | Bucket dump angle at maximum height | 32.46 ° |
| N | Boom angle at maximum lift | 55.10 ° |
| O | Bucket rollback angle (at ground position) | 35.57 ° |
| P | Bucket clearance at ground | 101 mm |
| R | Overall width (over tyres) | 1550 mm |
| S | Track width (inside tyre edges) | 1175 mm |
| T | Minimum undercarriage clearance | 231 mm |
Additional equipment (for reference)
4-in-1 Bucket
Auger
Bale Grab
Grapple (Crocodile-type)
Pallet Forks
Mower
Snow Plow
Sweeper
Bucket with grapple
Telescopic Loader GG010T
Telescopic Loader
The Gunter Grossmann GG010T telescopic loader is a modern and efficient machine designed for a wide range of industrial, construction, and agricultural applications. Its compact design and advanced technologies deliver reliable performance and excellent maneuverability, making it ideal for handling tasks in challenging terrains and demanding environments.
Engine and Drive – Efficiency and Reliability
Powered by a Yunnei Euro 5 diesel engine that complies with the latest emission standards, the GG010T delivers 25 HP at 2400 rpm. Combined with a four-wheel drive system, it offers strong traction and stability, enabling smooth operation and precise control across diverse working conditions.
Hydraulics and Steering System – Control and Comfort
The fully hydraulic steering system provides easy maneuverability and accurate control even in tight spaces, with a system pressure of 10 MPa for effective power delivery. Four-wheel hydraulic brakes and a manual parking brake ensure safety and stable handling during operation.
Working Range – Versatility and Performance
Equipped with a bucket capacity ranging from 0.4 to 0.5 m³ and a width of 1550 mm, the GG010T efficiently handles material loading and unloading tasks. With a maximum breakout force of 28 kN, it easily tackles tough materials. Its rated load capacity of 1000 kg and operating weight of 2800 kg make it a powerful and versatile machine for a variety of heavy-duty applications.
