Excavators
GG800NX
Ask of price
Weight
850 kg
Engine power
8.6 kW / 3600 rpm
Bucket capacity
0.025 cbm
Digging depth
1650 mm
Engine model
Koop 192F
Main pump
Wayne Hydraulic
Bucket width
380 mm
Digging height
2610 mm
Check out the offer
Technical Data
Specification
Expandable
Tracks
Movable
Arm
Operating Weight:
850 kg
Bucket Capacity for Digging:
0.025 cbm
Bucket Width:
300 mm
Engine:
Koop 192F
Rated Power:
8.6 kW / 3600 r/min
Main Pump:
Wanye Hydraulic
Hydraulic Pressure:
16 MPa
Swing Motor:
Dali
Travel Motor:
Dali
Travel Speed:
1.5 km/h
Working Range
Max. Digging Depth:
1650 mm
Max. Digging Height:
2610 mm
Max. Dumping Height:
1850 mm
Max. Digging Radius on the Ground:
2890 mm
Swing Radius:
360°
Max. Blade Height Increase:
345 mm
Max. Blade Digging Depth:
255 mm
Main Dimensions
Length:
2770 mm
Width:
930 mm
Height:
2100 mm
Total Track Length:
1230 mm
Chassis Width:
896 mm
Track Width:
200 mm
Additional equipment (for reference)
200 mm Bucket
500 mm Bucket
800 mm Bucket
800 mm Hydraulic bucket
Earth auger
Hydraulic breaker
Quick coupler
Rake
Ripper tooth
Wood grapple
Mini Excavator
GG 800NX
Crawler Excavator

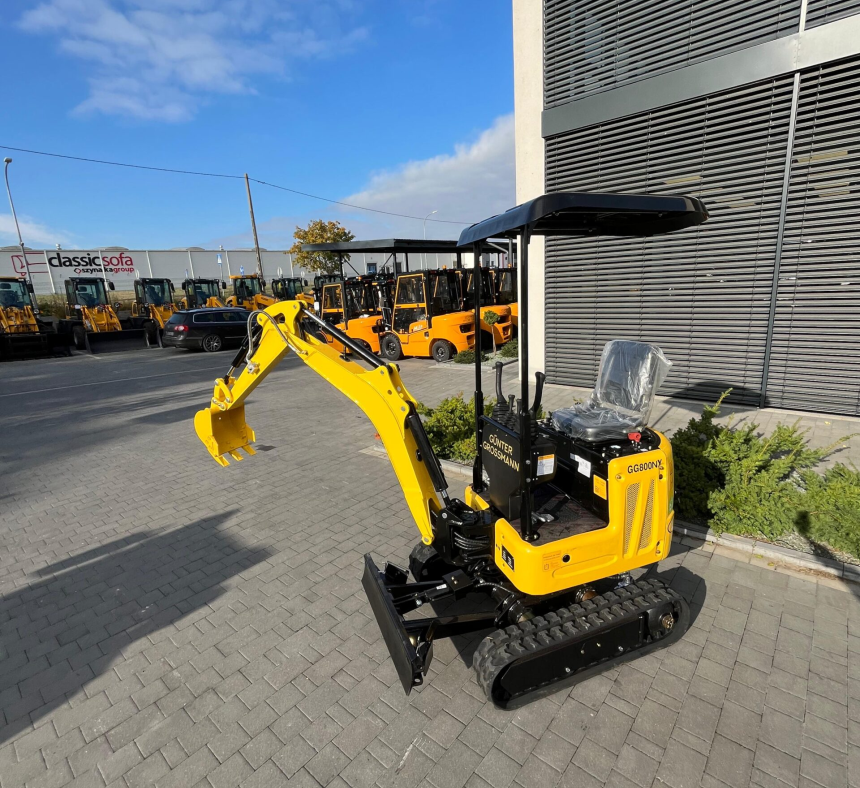

The GG800NX is a compact, professional mini excavator designed for precise work in tight spaces. With an 850 kg operating weight and 0.025 m³ bucket capacity (380 mm wide), it’s ideal for construction sites, gardens, and farms.
Powerful and Eco-Friendly
Powered by a Euro 5-compliant Gunter Grossmann Koop 192F engine (8.6 kW at 3600 rpm), the GG800NX offers strong performance with low emissions. The 16 MPa Wanye Hydraulic system and Dali motors ensure smooth operation, while a 1.5 km/h travel speed allows easy site mobility.
Precise and Versatile Operation
With a 1650 mm digging depth and 2610 mm digging height, plus 360° swing, the GG800NX delivers precise control even in tough conditions. A dumping height of 1850 mm and 345 mm blade lift enhance its versatility.
Compact and Durable
Measuring 2770×930×2100 mm, the GG800NX is easy to maneuver and transport. Its robust build ensures long-term durability, making it a top choice for professionals and individuals needing reliable excavation equipment.
