Loaders
GG940
Ask of price
Weight
1860 kg
Engine
Kubota Euro 5
Cylinders
4
Travel speed
12 km/h
Load capacity
850 kg
Engine power
18.2 kW
Cooling system
Water cooling
Lifting height
3 m
Check out the offer
Technical Data
Specification
Rated Load Capacity:
850 kg
Weight:
1860 kg
Engine:
Kubota Euro 5
Cooling System:
Water cooling
Number of Cylinders:
4
Rated Power:
18.2 kW
RPM:
2600 rpm
Pressure:
190 bar
Hydraulic Oil Flow - Working:
67 L/min
Hydraulic Oil Flow – Drive Pump:
78 L/min
Fuel Tank Capacity:
23 L
Battery Capacity:
60 Ah
Voltage:
12 V
Working Range
Driving Speed:
12 km/h
Turning Angle:
45°
Standard Tire Size:
26X12-12
Tire Pressure:
2.8 bar
Maximum Lifting Height:
3 m (3000 mm)
Maximum Bucket Tilt Angle:
30°
Maximum Reach (Boom Retracted):
2480 mm
Machine Ground Clearance:
1050 mm
Main Dimensions
Overall Length:
2600 mm
Overall Width:
1240 mm
Overall Height:
2130 mm
Overall Height with Fully Raised Boom and Open Bucket:
3430 mm
Distance from Front Wheels to Bucket (with Fully Extended Boom):
1520 mm
Distance from Center of Rear Axle to Rear of Machine:
850 mm
Distance from Center of Rear Axle to Front of Machine (without Extended Boom):
680 mm
Wheelbase (from Front to Rear Axle):
1350 mm
Diagram
| A | Overall height | 2130 mm |
| B | Overall length (with bucket) | 2600 mm |
| C | Rear ground clearance | 1050 mm |
| D | Rear overhang | 850 mm |
| E | Wheelbase | 1350 mm |
| F | Front axle–cab distance | 680 mm |
| G | Max dumping height | 3430 mm |
| H | Dump height (bucket lower edge) | 2730 mm |
| I | Loading height | 2380 mm |
| J | Forward reach | 1050 mm |
| K | Front axle–telescopic arm distance | 1520 mm |
| L | Rear axle–boom pivot distance | 863 mm |
| M | Boom pivot height | 2480 mm |
| N | Bucket pin height | 3000 mm |
| O | Overall width | 1240 mm |
| P | External turning radius | 2720 mm |
| R | Turning radius (front axle CL) | 2500 mm |
| S | Internal turning radius | 2262 mm |
| T | Steering angle | 45° |
| W | Min. internal turning radius | 1020 mm |
Additional Attachments (for reference)

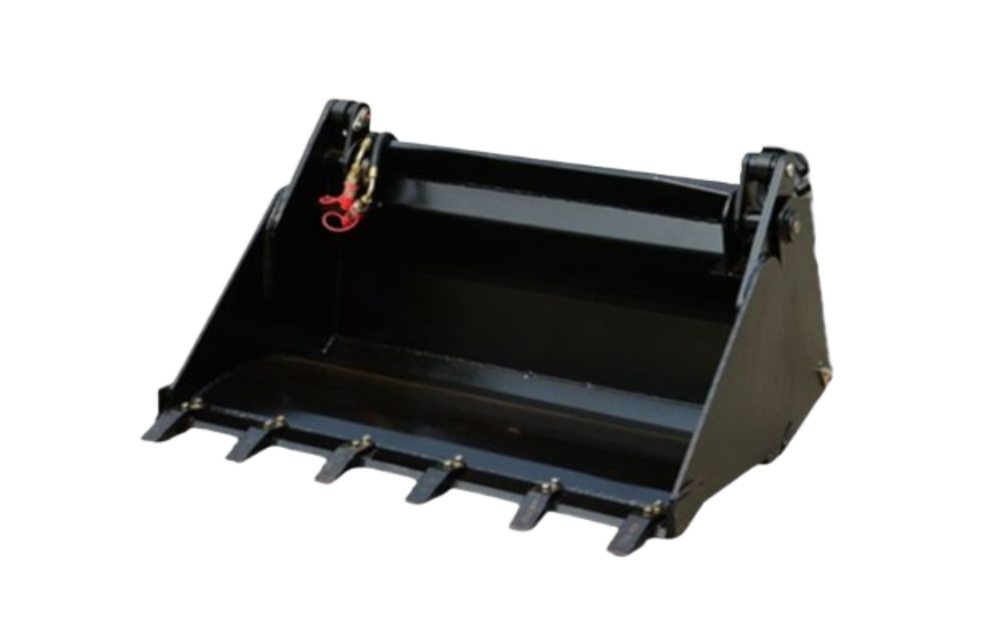

4-in-1 Bucket

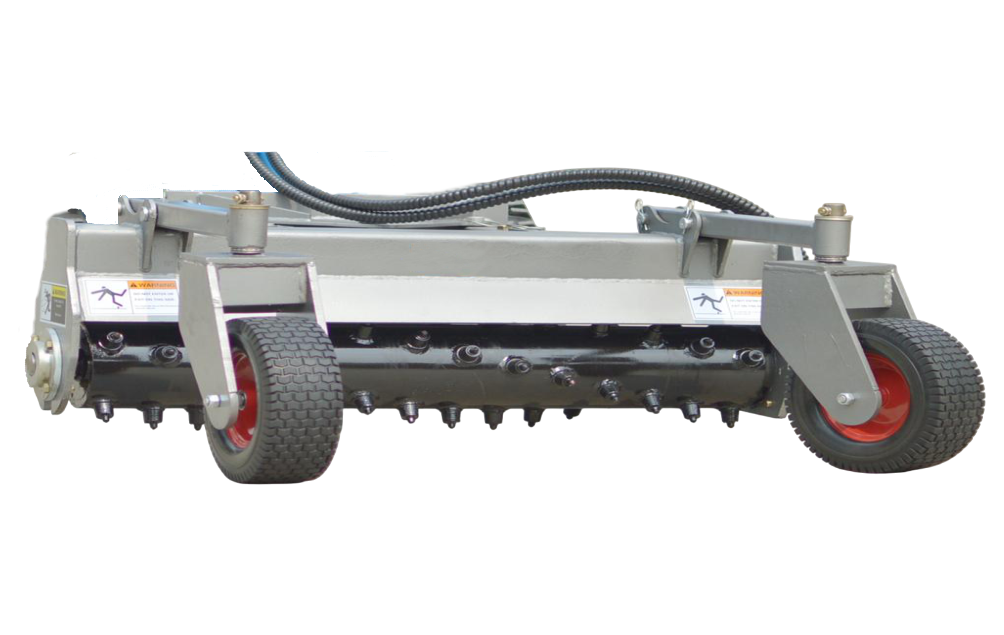

Tiller

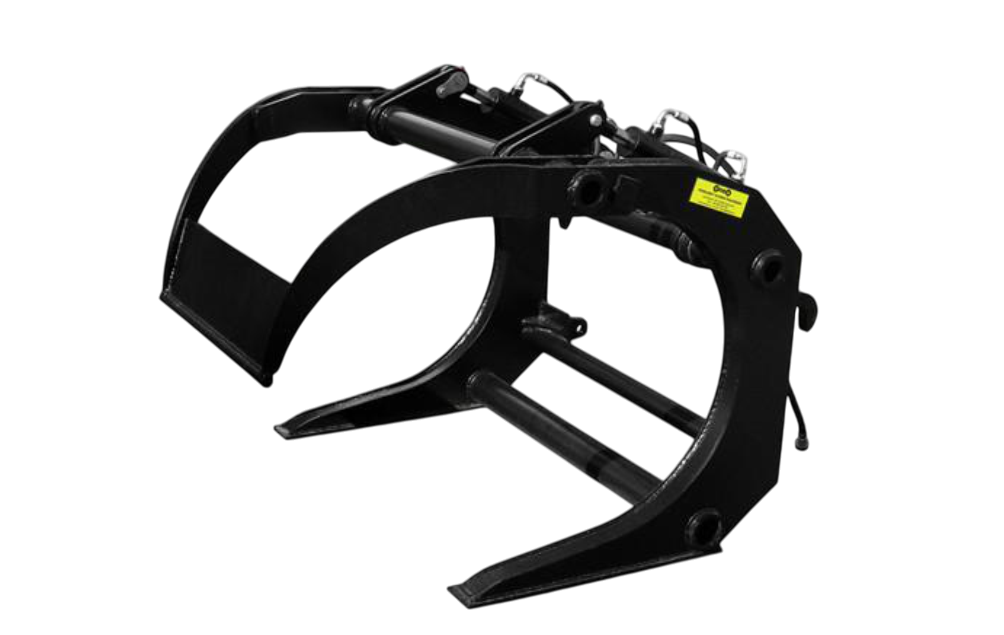

Log Grapple

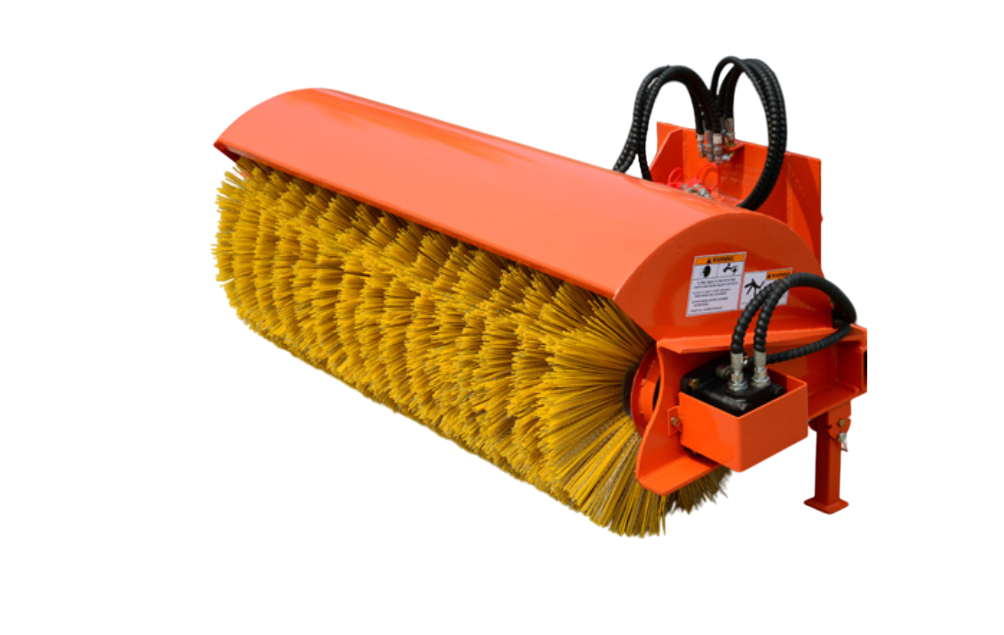

Sweeper

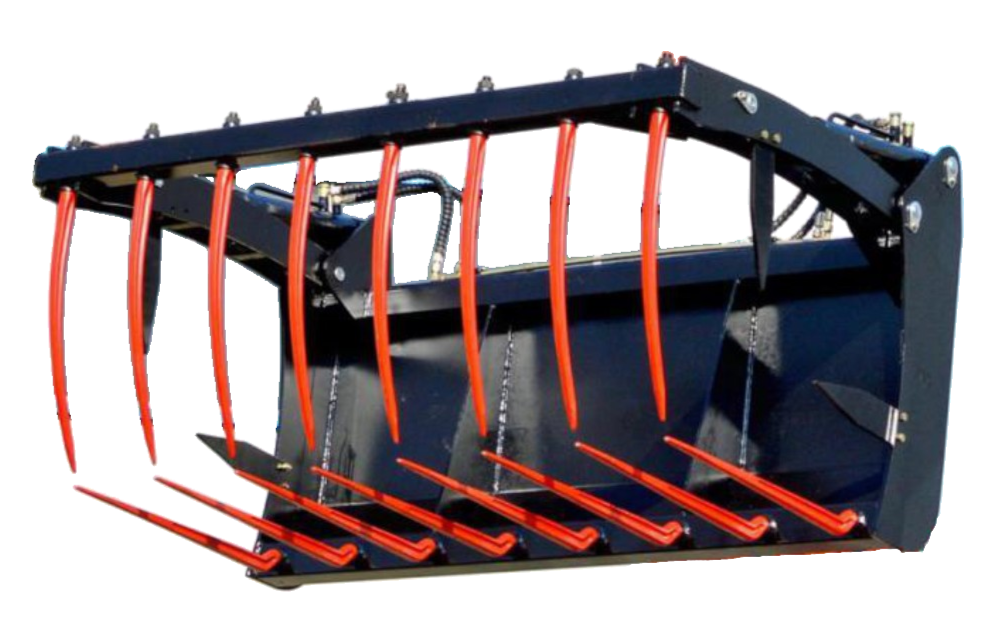

Silage Fork with Grab
Pallet Forks

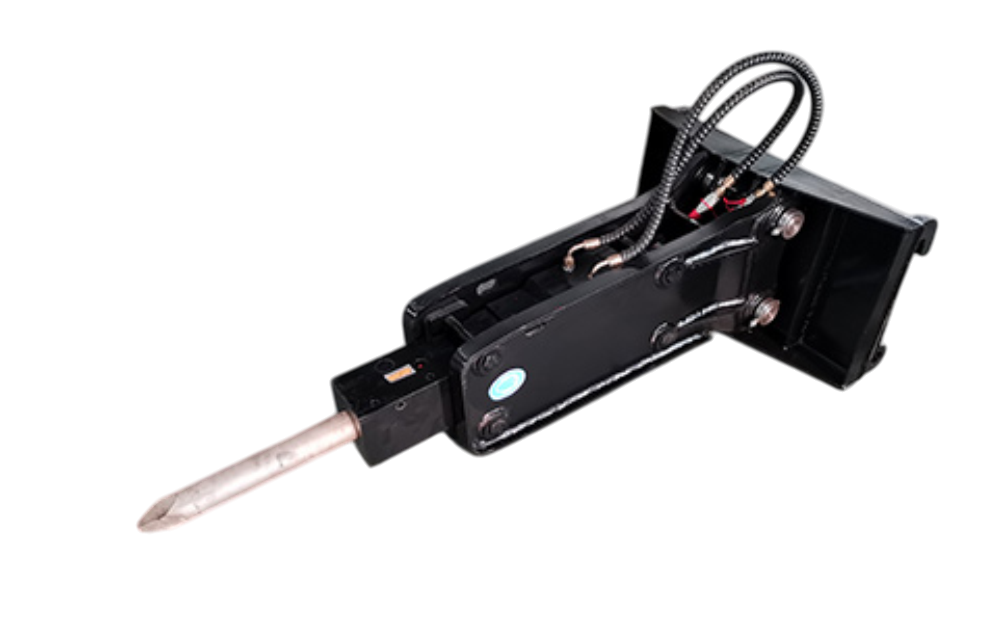

Hydraulic Breaker

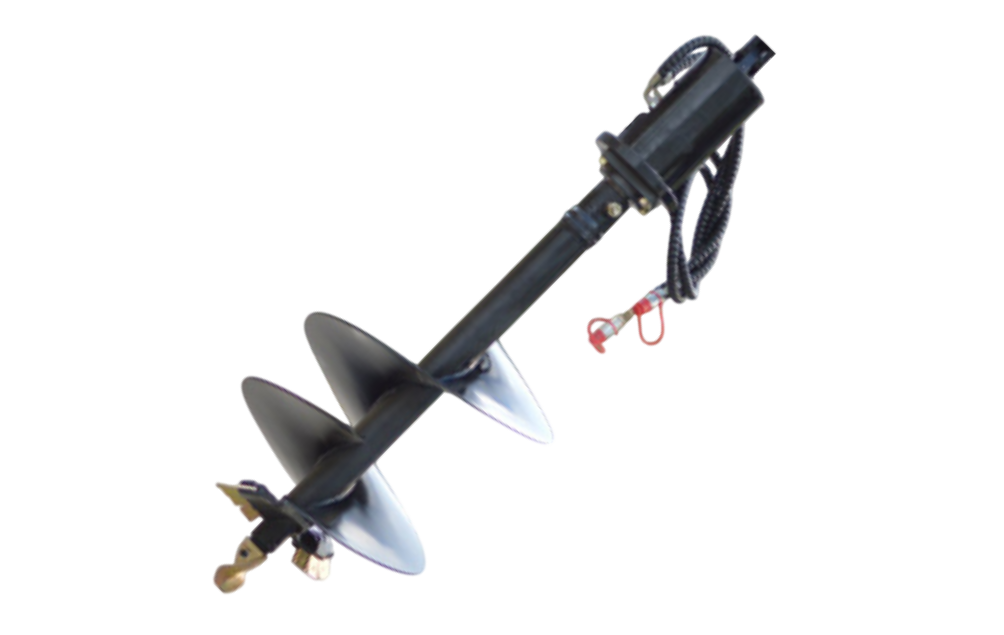

Earth Auger

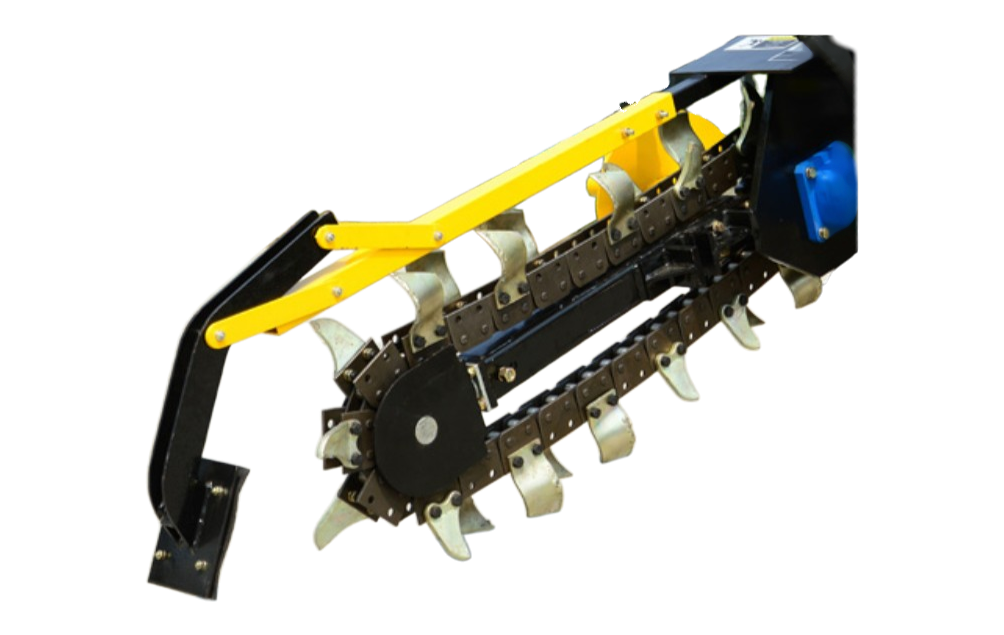

Trencher

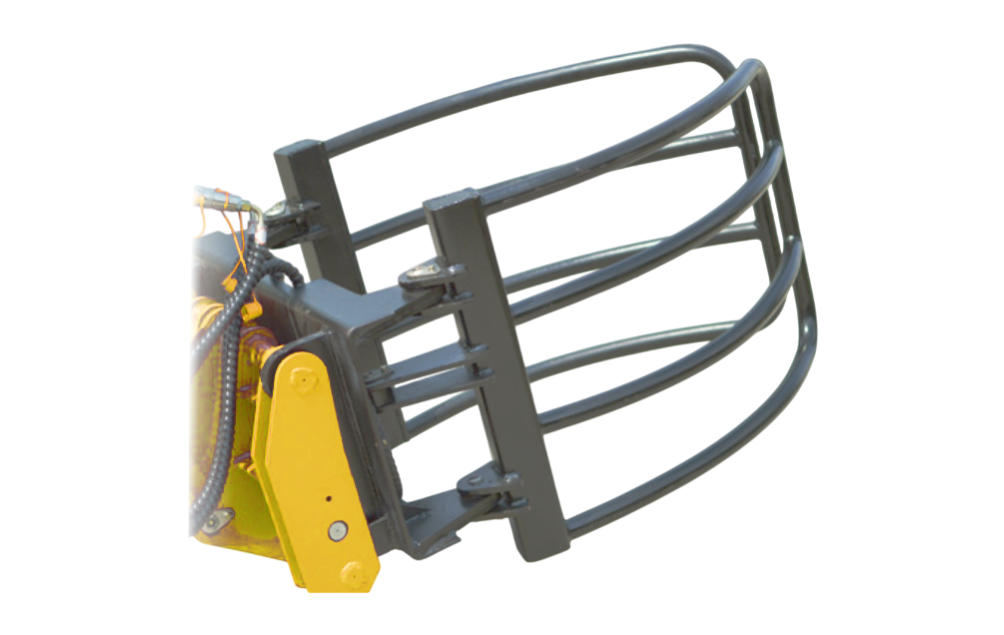

Bale Grab
Telescopic Loader GG940
Telescopic Loaders
The GG940 is a compact and powerful telescopic loader designed for construction, agriculture, and industrial tasks. Equipped with a Kubota Euro 5 engine and a modern hydraulic system, it performs well in narrow spaces and tough terrain.
Engine and Drive
Powered by a fuel-efficient four-cylinder Kubota Euro 5 engine delivering 18.2 kW at 2600 RPM, with water cooling for reliable operation in demanding conditions.
Hydraulic System
Features a hydraulic system with 67 L/min oil flow for precise boom control and 78 L/min drive pump flow for smooth travel. Maximum pressure is 190 bar.
Performance
Max lifting height of 3 m, bucket tilt angle of 30°, and boom reach of 2480 mm ensure efficient material handling. Ground clearance is 1050 mm for rough terrain.
Dimensions and Maneuverability
Compact size (2600 mm length, 1240 mm width, 2130 mm height) allows easy operation in tight spaces. Boom extension reaches 1520 mm from front wheels, aiding precise maneuvering.
