Excavators
GG6000
Ask of price
Weight
5900 kg
Power
42,4 kW
Emission standard
Euro 5
Maximum digging height
5928 mm
Engine
Yanmar
Number of cylinders
4
Standard bucket capacity
0,21 m³
Maximum digging depth
4158 mm
Check out the offer
Technical Data
Engine
Emission standard
Euro 5
Manufacturer / model
Yanmar 4TNV98C-WSY
Power / engine speed
42,4 kW (58 KM) / 2000 rpm
Type
Diesel engine, liquid-cooled, 4-stroke, 4-cylinder
Hydraulic system
Main pump
Lonking
Hydraulic valves
Lonking
Travel motors
Lonking
Swing motor
Lonking
Maximum hydraulic flow
126 L/min
Hydraulic system pressure
28 MPa
Hydraulic pilot control system (servo)
Yes
Fuel tank capacity
87 L
Hydraulic oil tank capacity
100 L
Operating parameters
Machine weight
5900 kg
Maximum bucket digging force
48 kN
Maximum arm digging force
35 kN
Standard bucket capacity
0.21 m³
Maximum gradeability
35° (70%)
Swing speed
11 rpm
Air conditioning
Yes
Undercarriage (tracks)
Maximum travel speed
2.4 / 4.3 km/h
Track shoe width
400 mm
Number of track shoes per side
40 pcs
Number of upper rollers per side
1
Number of lower rollers per side
5
Scope of work
Maximum digging height
5928 mm
Maximum dumping height
4228 mm
Maximum digging depth
4158 mm
Maximum vertical digging depth
3458 mm
Maximum digging radius
6162 mm
Minimum swing radius
2389 mm
Maximum dozer blade lifting height
380 mm
Maximum dozer blade cutting depth
455 mm
Dimensions
Overall dimensions (L × W × H)
5802 × 1960 × 2420 mm
Cab height
2600 mm
Track length on ground (wheelbase)
1990 mm
Track gauge
1560 mm
Minimum ground clearance
353 mm
Rear swing radius
1520 mm

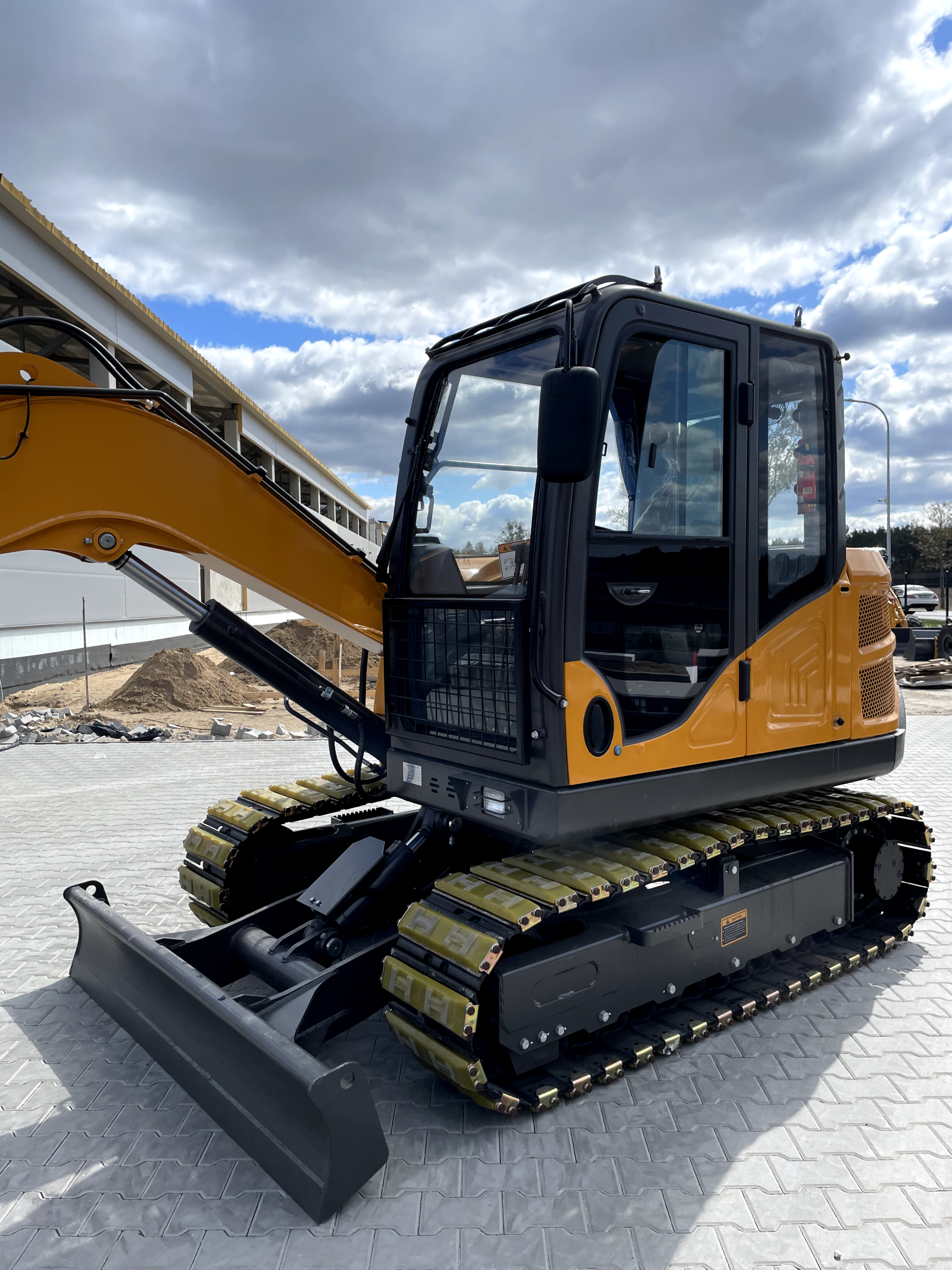

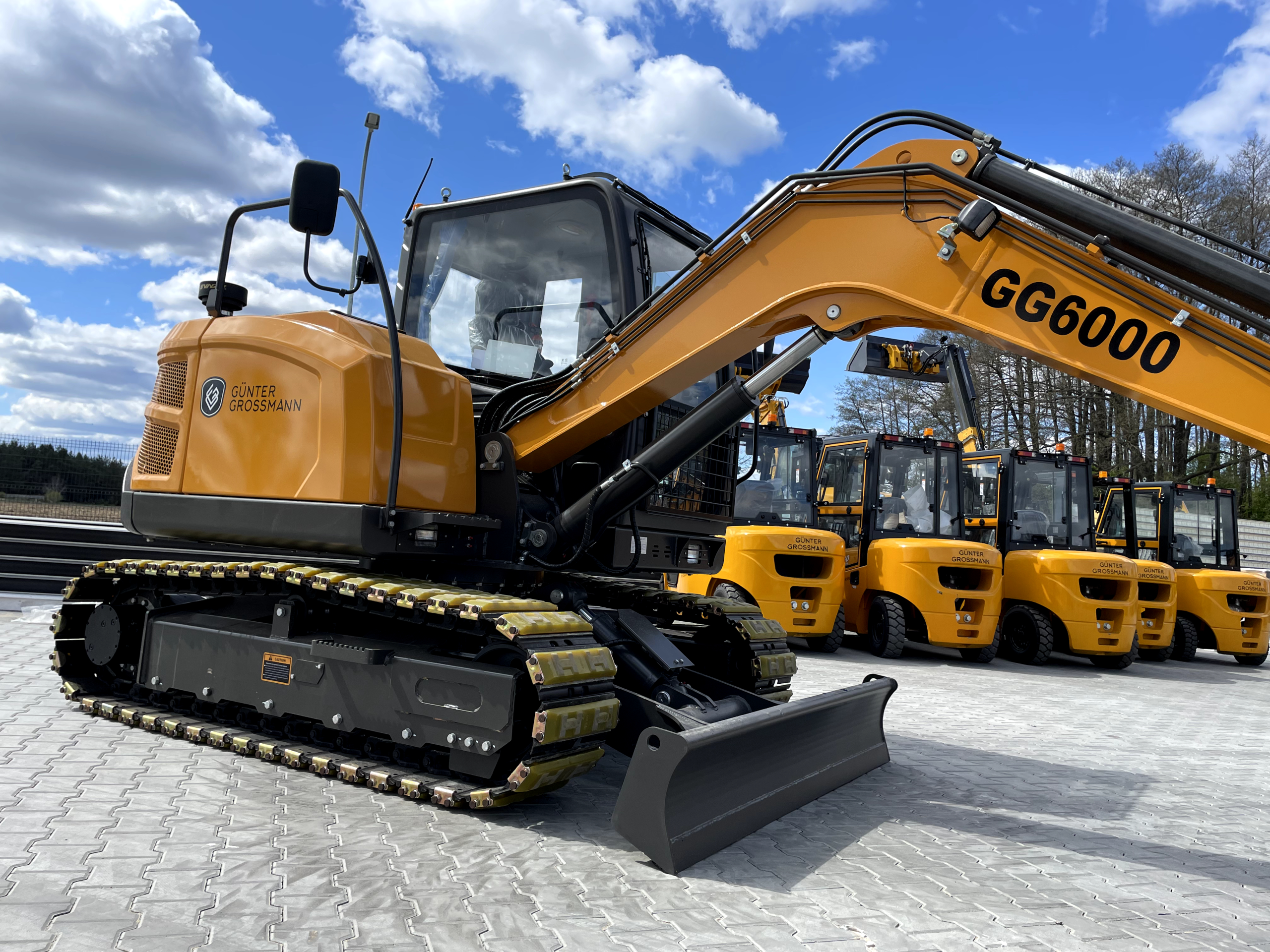

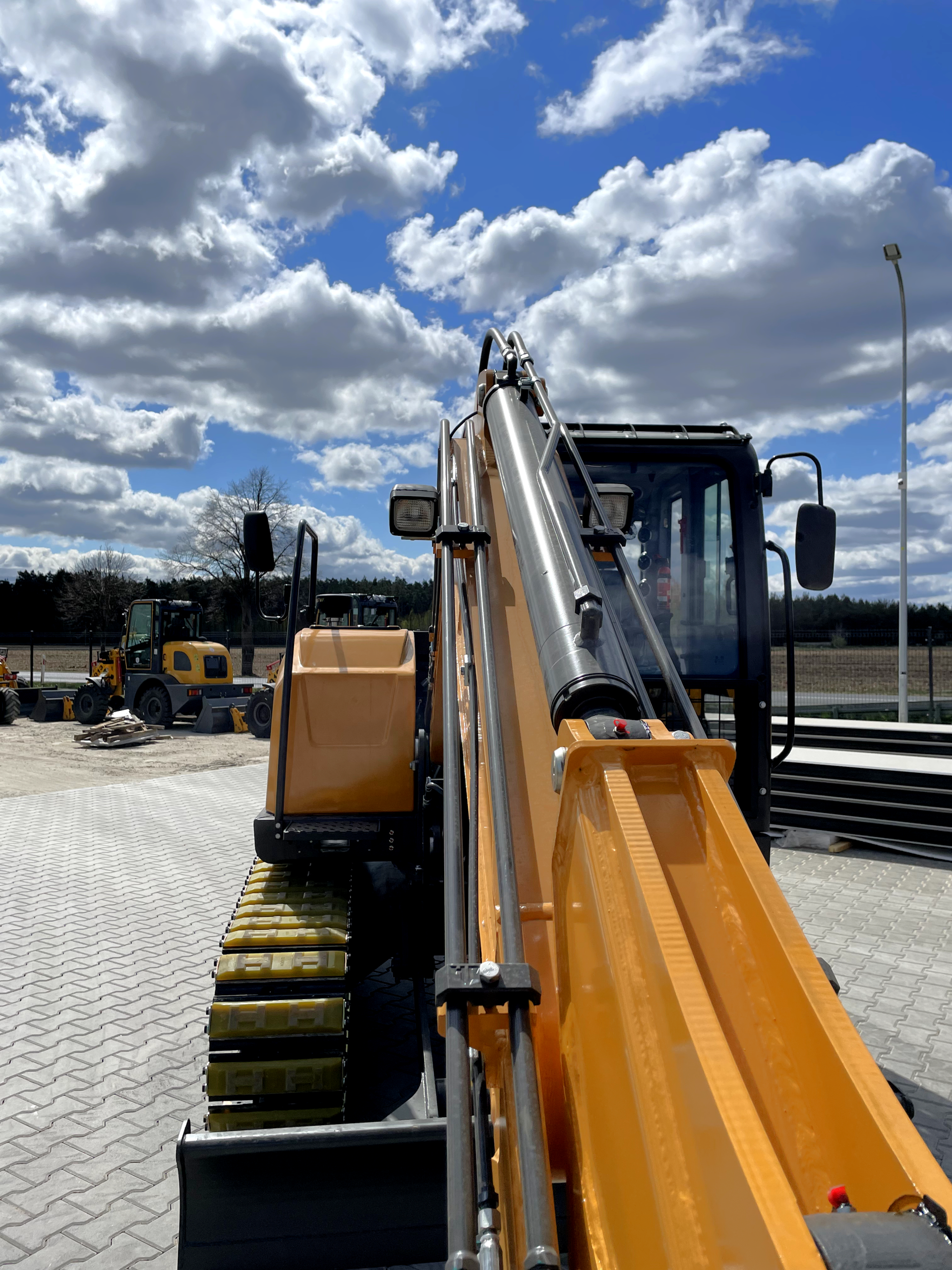

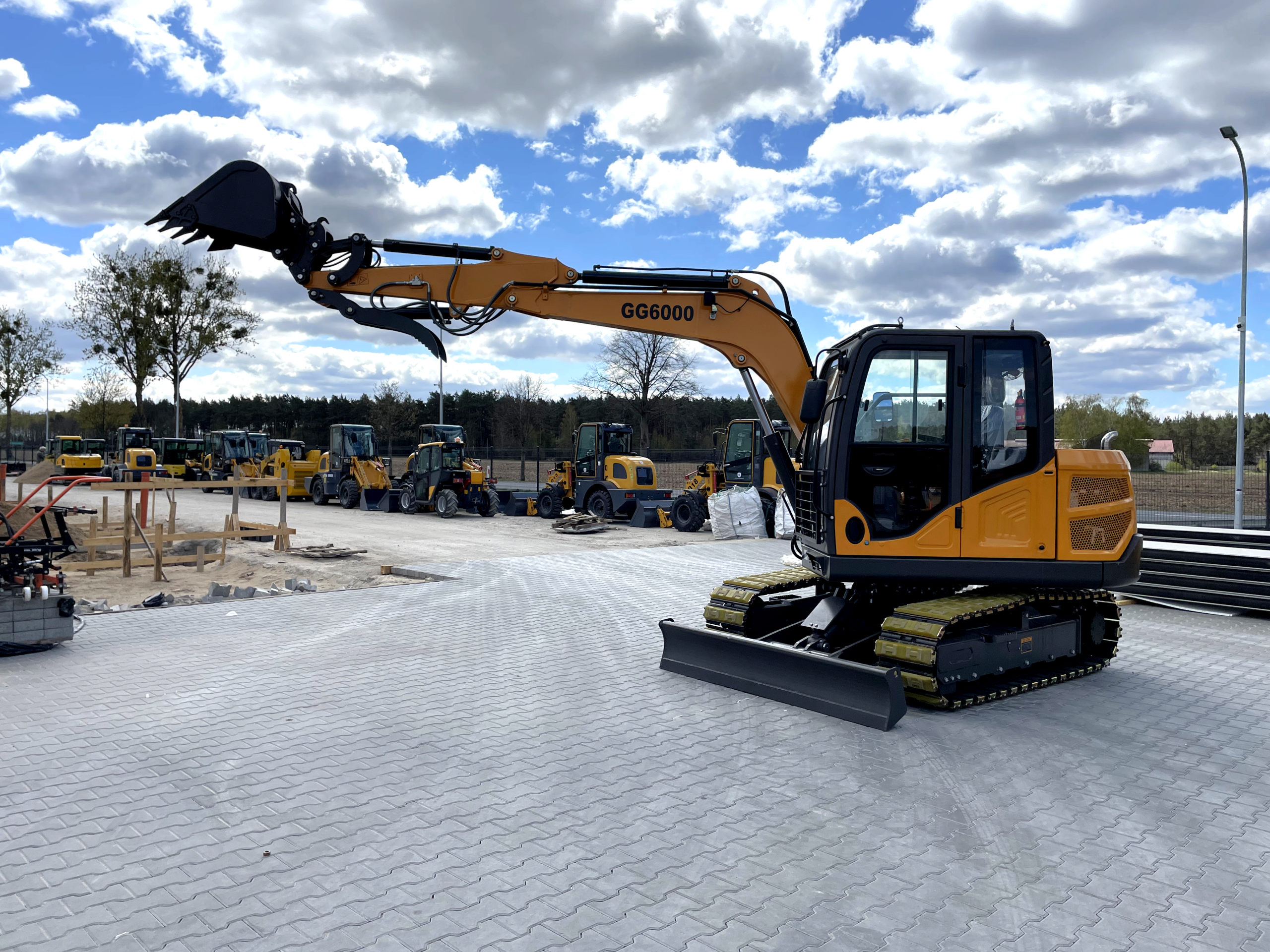

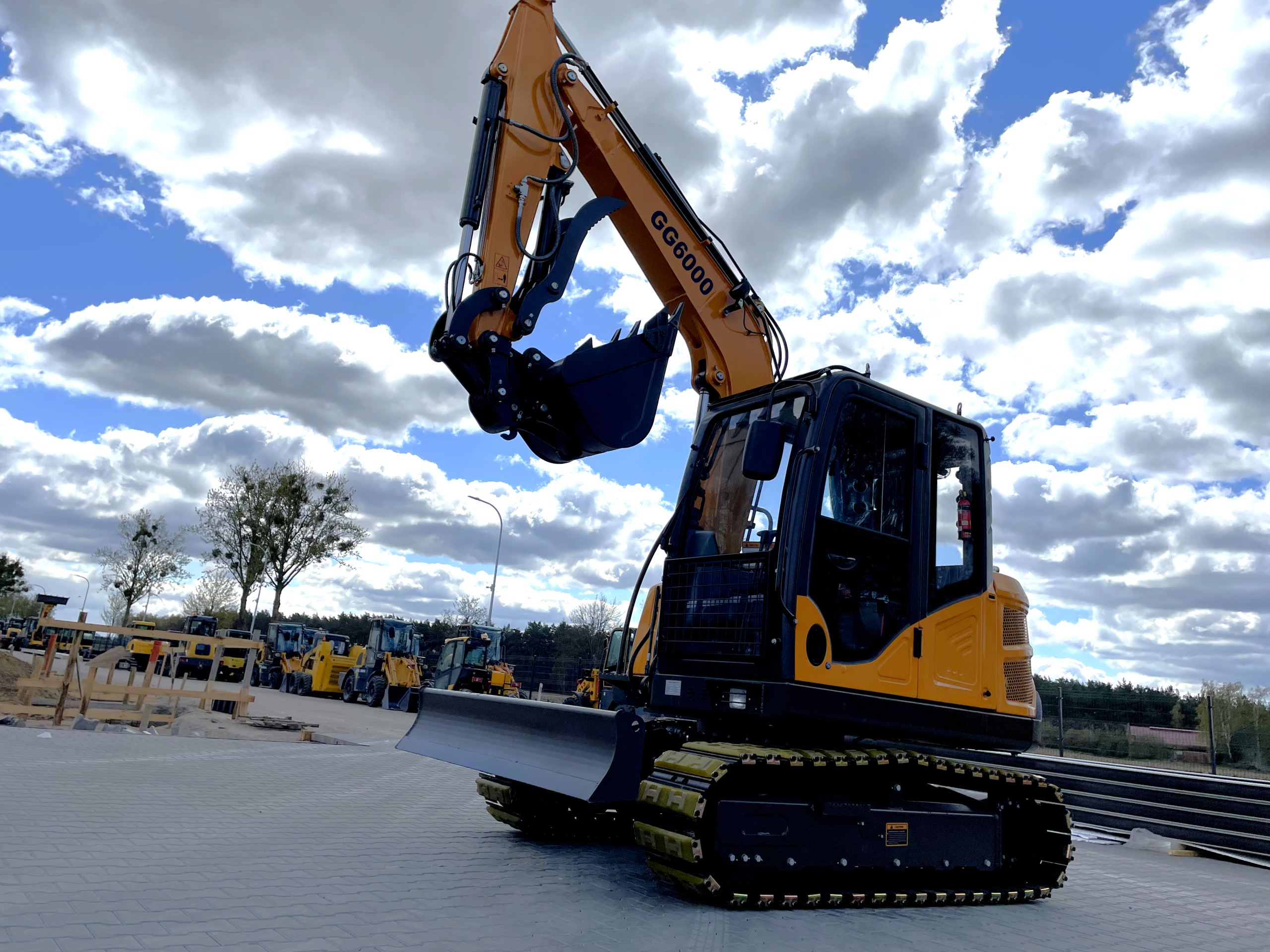

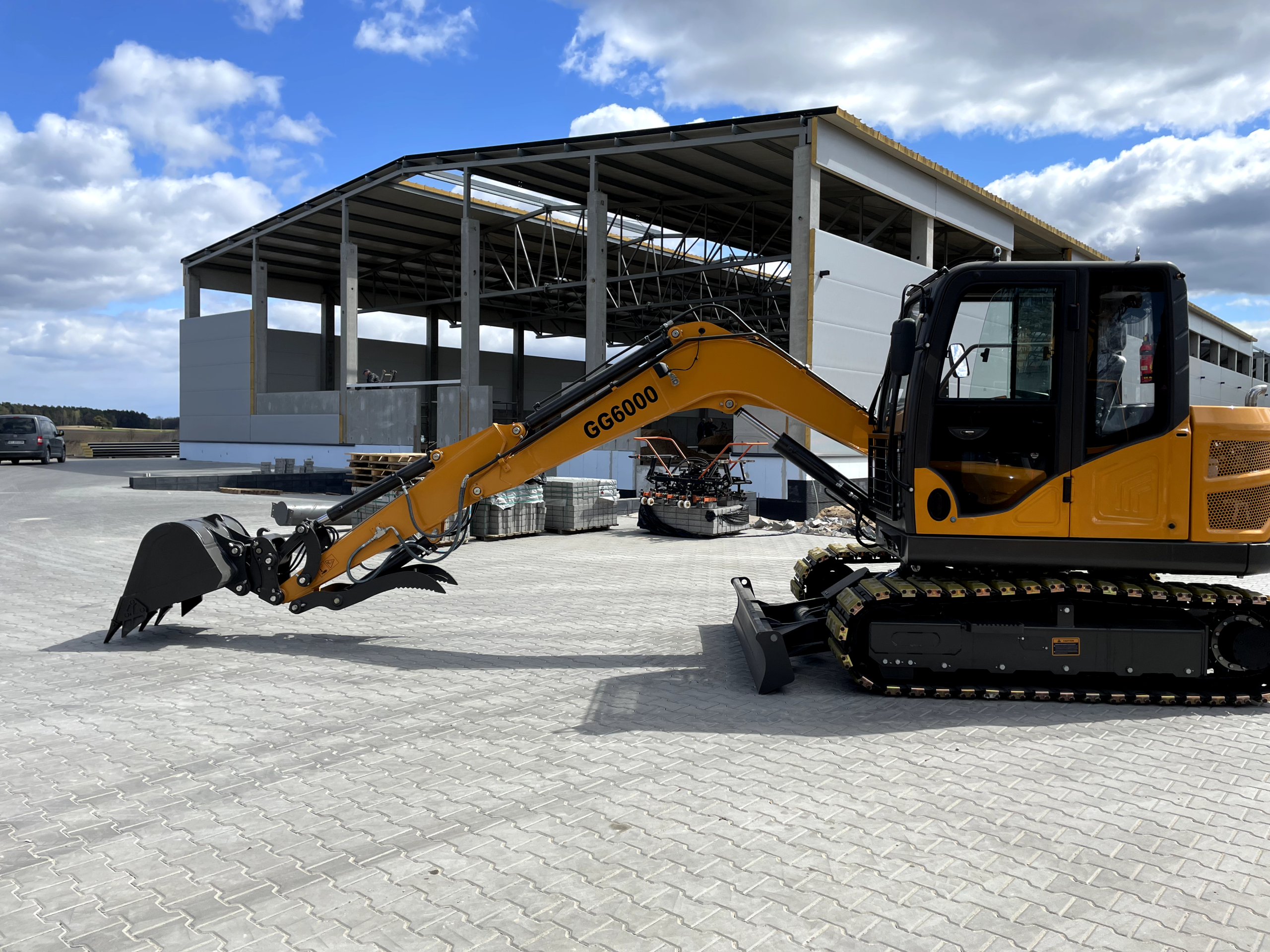

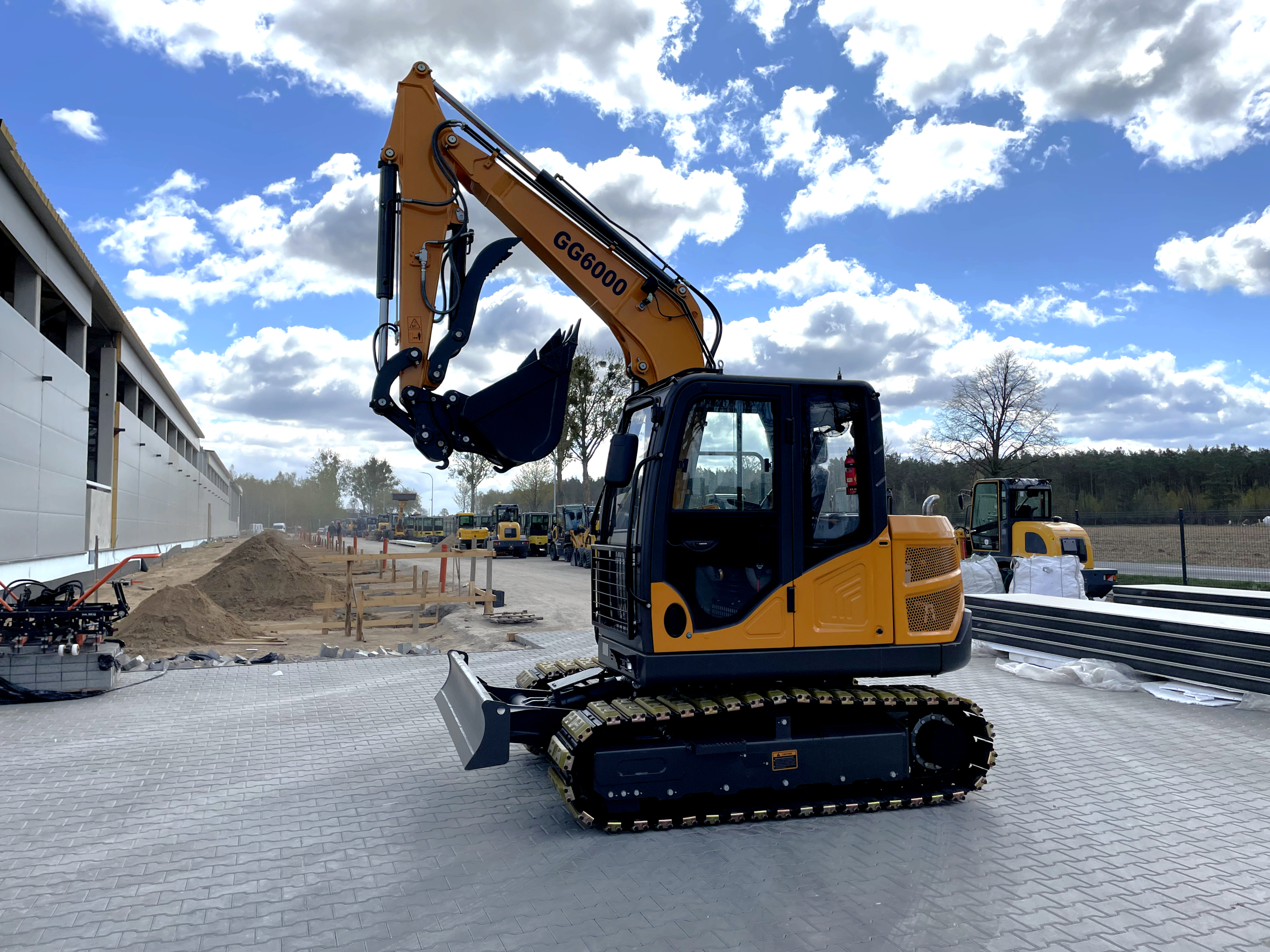

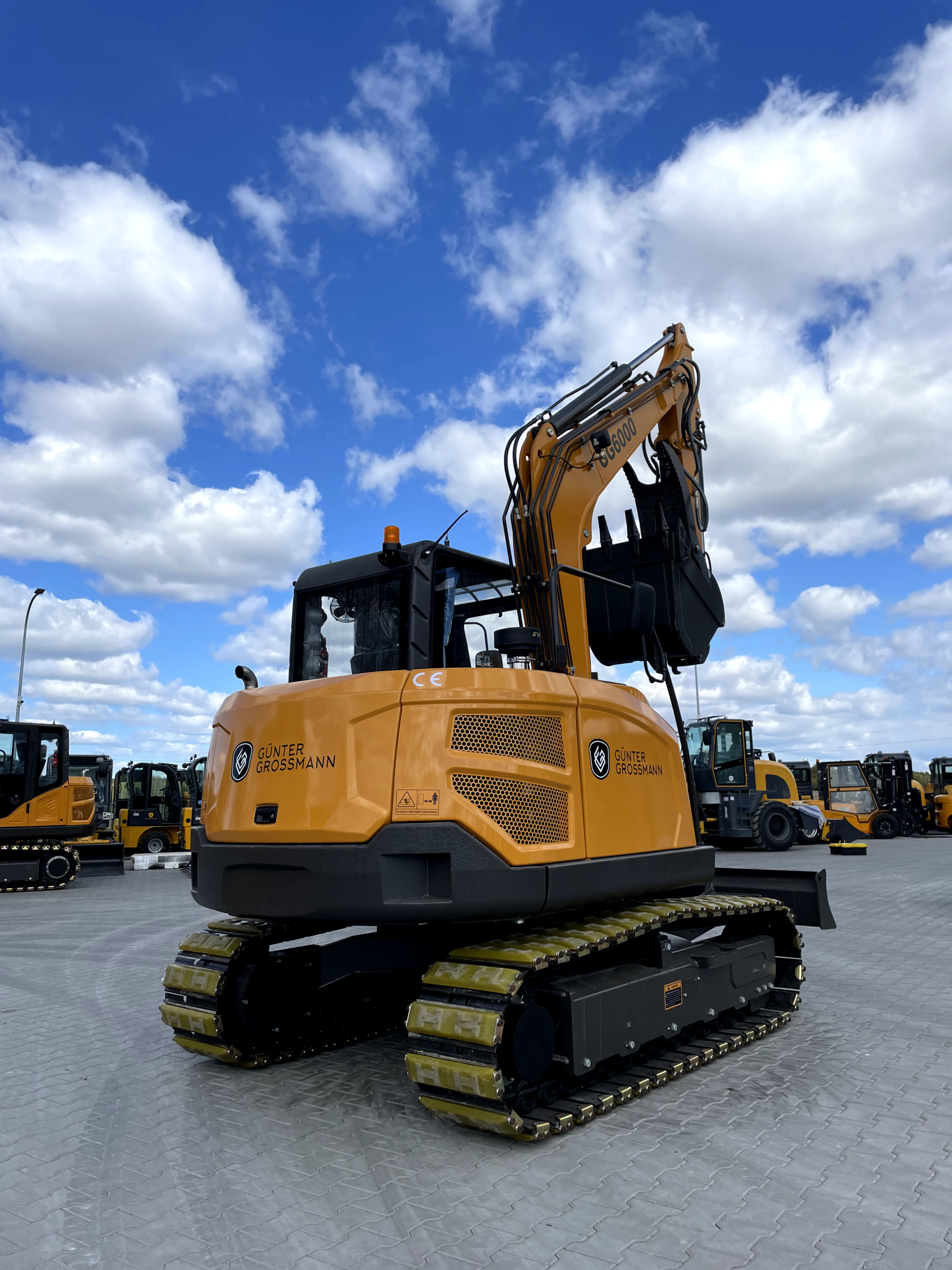

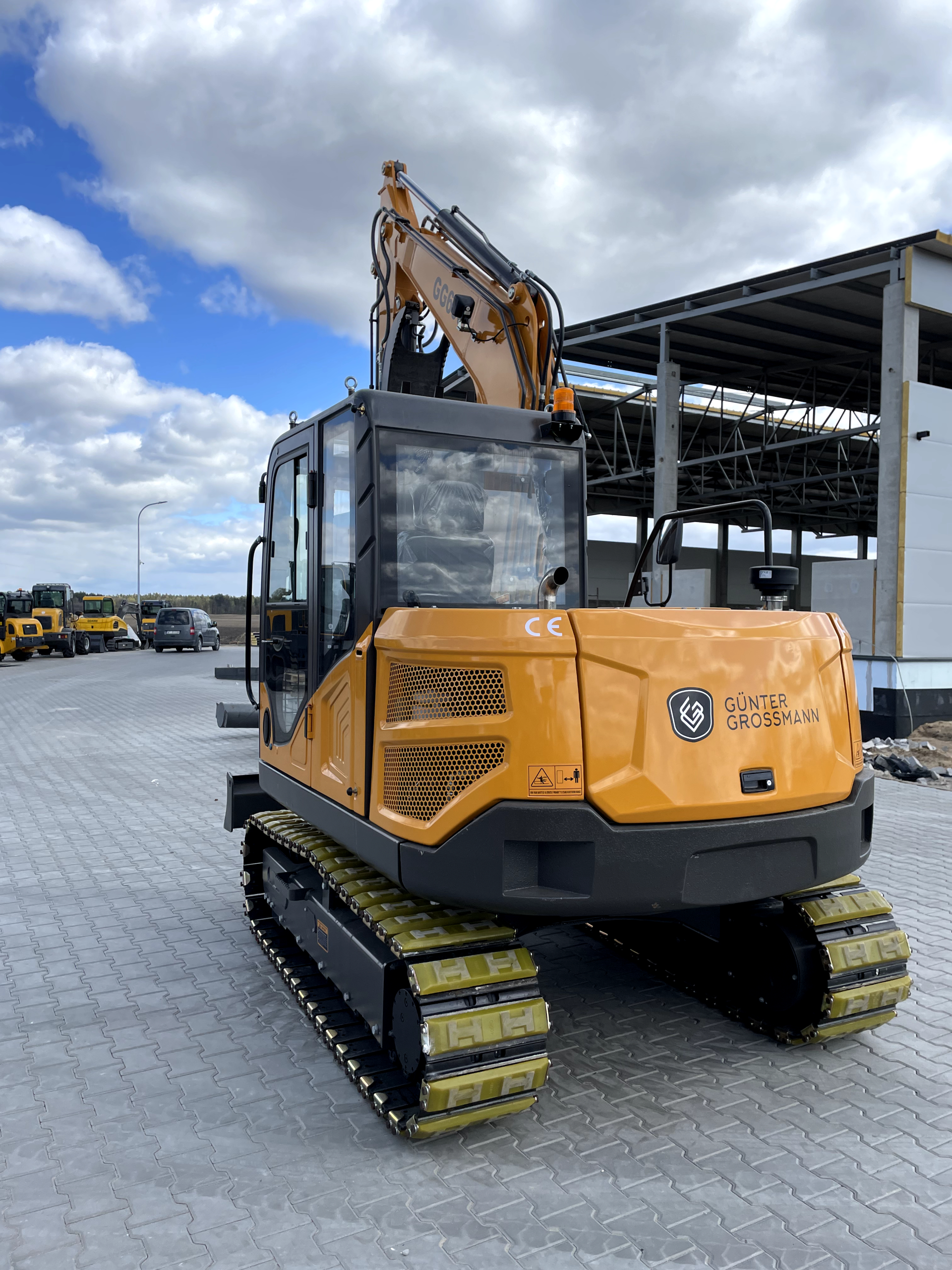

GG6000 Tracked Excavator
6-ton tracked excavator
If you are looking for a reliable and efficient machine for demanding earthworks, the GG6000 tracked excavator is an excellent choice. With an operating weight of 5,900 kg, modern design, and high power output, it performs perfectly on construction sites, installation projects, and road works.
Modern Yanmar Euro 5 diesel engine
The GG6000 excavator is equipped with a reliable Yanmar 4TNV98C-WSY engine that meets Euro 5 emission standards. With a power output of 42.4 kW at 2000 rpm, it ensures high performance, low fuel consumption, and quiet, stable operation even under heavy load.
High digging force and precise hydraulics
The machine delivers excellent working efficiency with a bucket digging force of 48 kN and an arm digging force of 35 kN. Smooth and precise operation is ensured by an advanced hydraulic system with 28 MPa pressure, featuring pilot (servo) control.
Stability, comfort, and performance in tough terrain
The tracked undercarriage with 400 mm wide pads provides excellent stability and allows operation on slopes up to 35° (70%). The excavator reaches a travel speed of up to 4.3 km/h, while a compact rear swing radius of 1520 mm ensures easy operation in confined spaces. The air-conditioned operator cabin enhances comfort and safety during long working hours.
Gallery
