Loaders
GG400E
Ask of price
Weight
1060 kg
Battery type
Lithium-ion
Battery
60V / 150Ah
Lifting height
2100 mm
Load capacity
400 kg
Charging time
8-10 hours
Bucket capacity
0.2 m³
Turning radius
3800 mm
Check out the offer
Technical Data
Specification
Bucket capacity:
0.2 m³
Load capacity:
400 kg
Battery:
60V / 150Ah
Battery type:
Lithium-ion
Nominal voltage:
60V
Charging time:
8–10 hours
Hydraulic system:
Yes
Operating pressure:
16 MPa
Hydraulic oil tank capacity:
10 L
Tires:
6.00-12
Total weight:
1060 kg
Working Range
Maximum lifting height:
2100 mm
Maximum dumping height:
1400 mm
Ground clearance:
200 mm
Lifting time:
4.8 s
Minimum turning radius:
3800 mm
Battery lifespan:
4000 hours
Number of full charging cycles:
1000
Operating time per charge:
6
Dimensions
Length:
3260 mm
Width:
1040 mm
Height:
2180 mm
Diagram
| A | Lifting height (to bucket edge) | 2100 mm |
| B | Loading height (to bucket bottom) | 1400 mm |
| C | Reach at maximum lift | 600 mm |
| D | Wheelbase | 1330 mm |
| E | Overall length | 3260 mm |
| F | Overall height (to roof/ROPS frame) | 2180 mm |
| G | Bucket width | 1040 mm |
| H | Articulation angle | 35 ° |
| I | Body width | 840 mm |
| J | Overall machine width | 1040 mm |
Additional equipment (for reference)
4-in-1 bucket
Bale forks
Bucket with grapple
Pallet forks

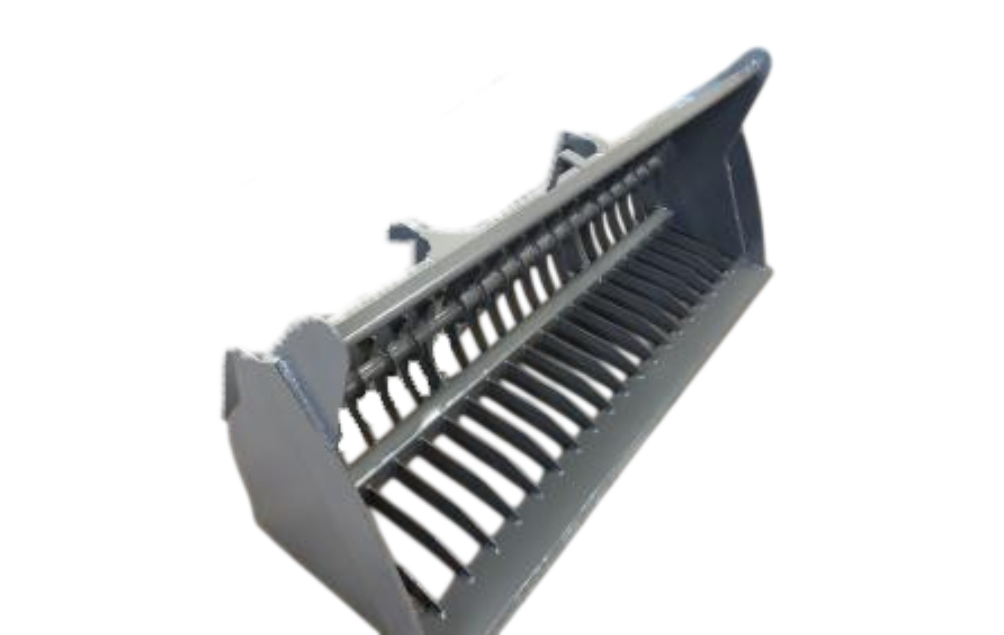

Skeleton bucket
Snow plow
Sweeper
Grasp fork
Electric Loader GG400E
Articulated Loader
The GG400E electric loader combines performance with eco-friendly technology, making it ideal for indoor and low-emission environments. Its electric drive and advanced hydraulics ensure reliable, quiet operation.
Power Efficiency – Lithium-Ion Battery
Equipped with a 60V, 150Ah lithium-ion battery, the GG400E offers up to 6 hours of continuous work and a lifespan of around 4000 hours. Charging takes 8–10 hours, allowing easy scheduling of breaks.
Hydraulic System and Maneuverability
The loader lifts materials quickly, with a max height of 2100 mm and dumping height of 1400 mm. Bucket lift time under full load is 4.8 seconds. Hydraulic steering and a 3800 mm turning radius ensure easy operation in tight spaces.
Load Capacity and Compact Design
With a 0.2 m³ bucket and 400 kg load capacity, the GG400E excels in confined areas like warehouses. Its compact size (3260 mm long, 1090 mm wide, 2180 mm high) and 200 mm ground clearance allow easy transport and operation on uneven terrain.
Eco-Friendly and Cost-Effective
Zero emissions and low noise make the GG400E perfect for indoor use. A 10 L hydraulic oil tank supports long, reliable operation with minimal maintenance.
