Loaders
GG035
Ask of price
Weight
10 500 kg
Engine
Weichai
Bucket capacity
2 m³
Lifting height
4137 mm
Load capacity
3500 kg
Engine power
135 HP (99 kW)
Drive
4x4
Dump height
3152 mm
Explore the offer
Technical Data
Specifications
Machine weight
10 500 kg
Rated lifting capacity
3,500 kg
Emission standard
Euro V
Engine
Weichai
Engine model
WP4.6NG135F670
Engine power
135 HP (99 kW)
Maximum torque
610 Nm @ 1300–1500 rpm
Number of cylinders
6
Displacement
4.58 l
Drive
4x4
Steering system
Steering type
Articulated
Steering system relief pressure
16.5 MPa
Hydraulic system
Main pump type
Gear pump
Main safety valve pressure
16 MPa
Lifting time
5.8 s
Dumping time
1.5 s
Lowering time (float position)
3.0 s
Total work cycle time
10.3 s
Transmission
Transmission type
Power Shift with wet clutch
Torque converter
Single-stage, three-element
Maximum forward speed
35 km/h
Maximum reverse speed
28 km/h
Number of forward gears
4
Number of reverse gears
3
Bucket
Bucket width
2500 mm
Bucket rollback angle at carry position
52 °
Bucket rollback angle at maximum height
52 °
Maximum dump angle at full height
38 °
Steering angle (each side)
39.67 °
Rear departure angle
24.47 °
Turning radius (bucket in transport position)
5894 mm
Turning radius (outside of tires)
4979 mm
Dimensions
Overall length with bucket lowered
7147 mm
Overall width (over tires)
2222 mm
Cab height
3284 mm
Wheelbase
2765 mm
Ground clearance
419 mm
Dump reach at maximum lift
1385 mm
Dump height at maximum lift
3152 mm
Maximum hinge pin height
4137 mm

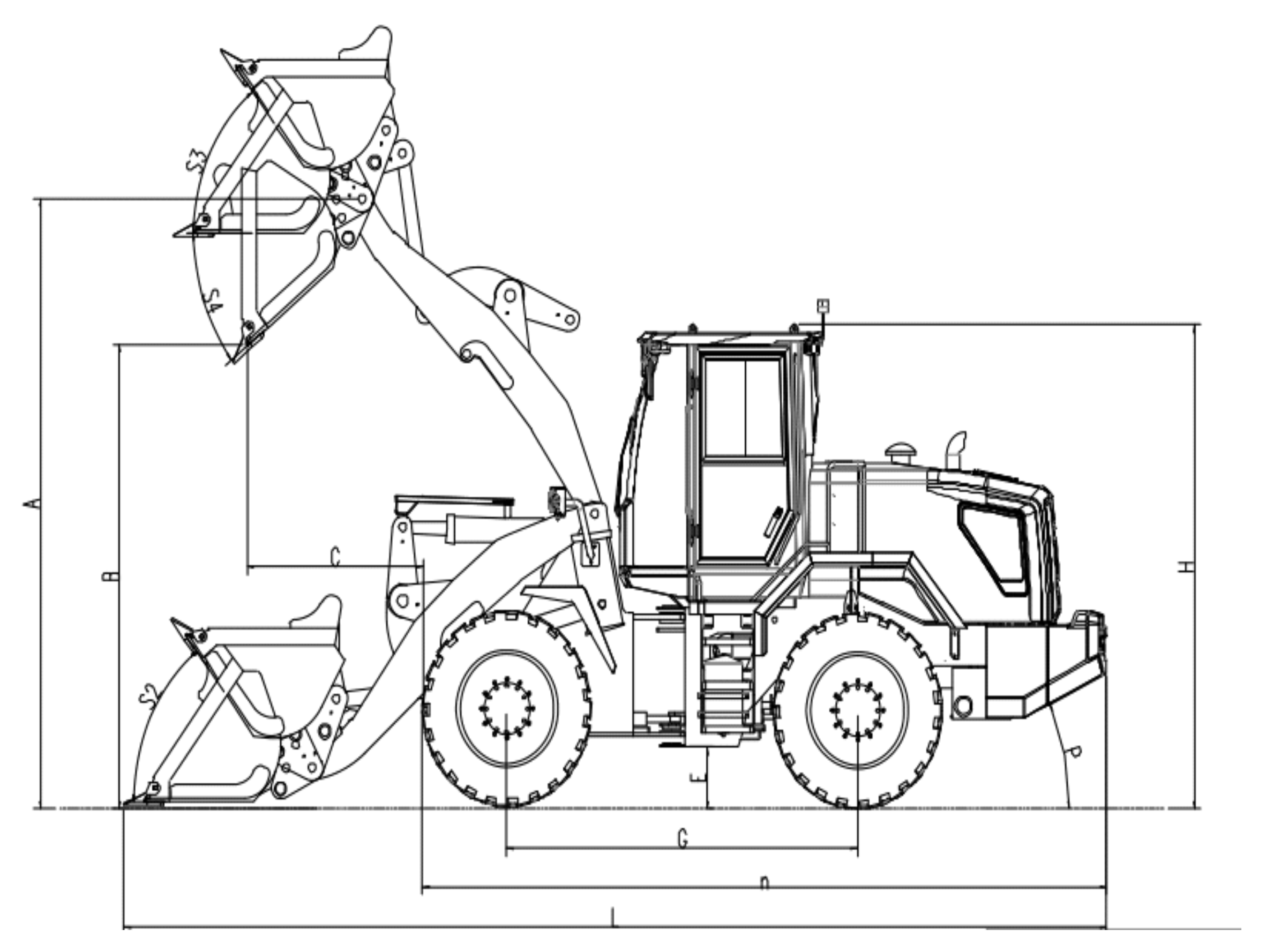

Characteristics
| A | Maximum hinge pin height | 4137 mm |
| B | Dump height at maximum lift | 3152 mm |
| C | Dump reach at maximum lift | 1385 mm |
| F | Ground clearance | 419 mm |
| G | Wheelbase | 2765 mm |
| H | Cab height | 3284 mm |
| K | Overall width (over tires) | 2222 mm |
| L | Overall length with bucket lowered | 7147 mm |
| M | Steering angle (each side) | 39,67 ° |
| P | Rear departure angle | 24,47 ° |
| R1 | Turning radius (bucket in transport position) | 5894 mm |
| R2 | Turning radius (outside of tires) | 4979 mm |
| W | Bucket width | 2500 mm |
| S2 | Bucket rollback angle at carry position | 52 ° |
| S3 | Bucket rollback angle at maximum height | 52 ° |
| S4 | Maximum dump angle at full height | 38 ° |

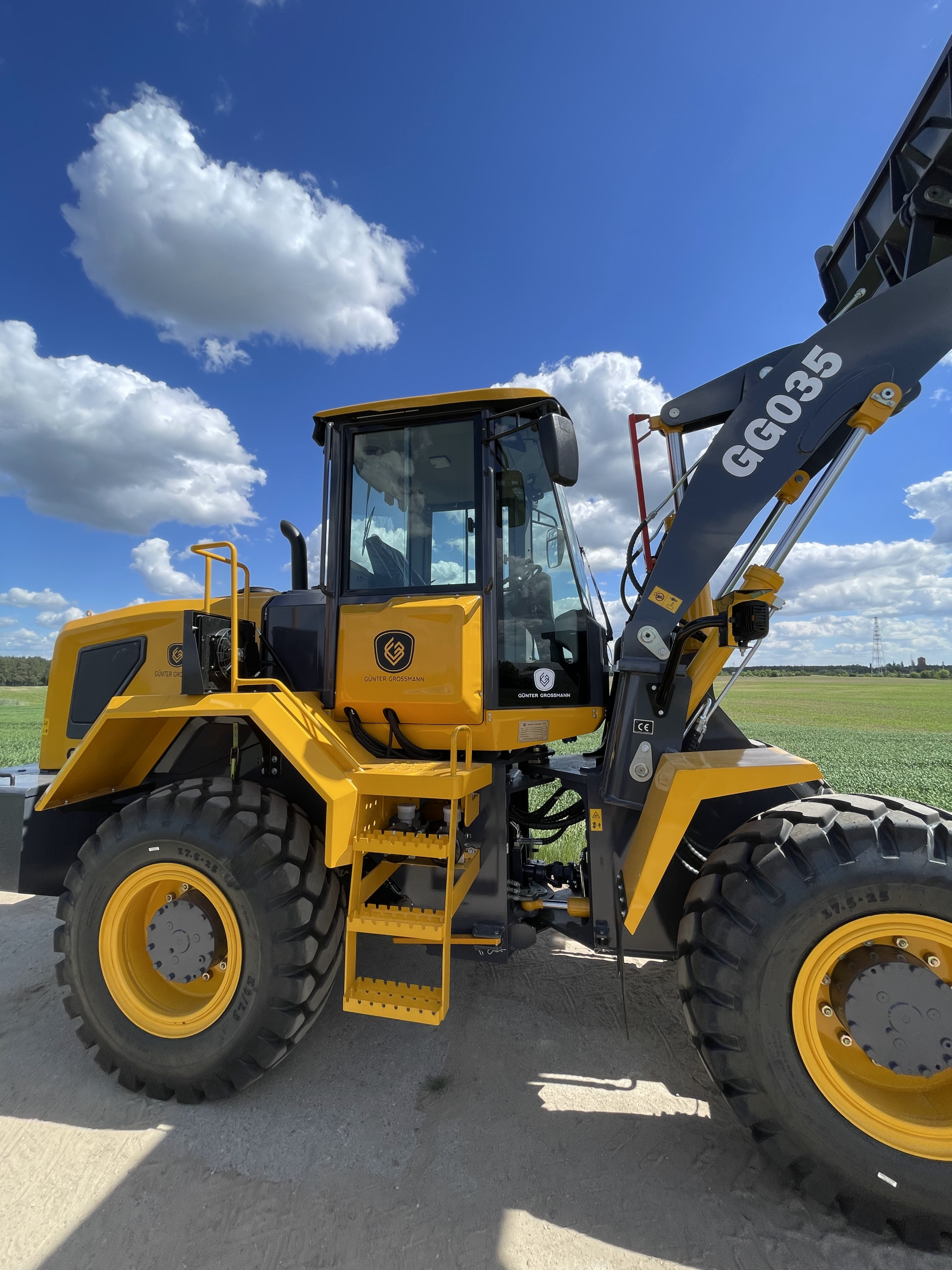

Articulated loader
GG035
Articulated loader
The GG035 Gunter Grossmann is a modern, medium-heavy articulated loader designed for intensive work in construction, agriculture, and the municipal sector. It combines high performance, a robust design, and precise control, ensuring reliability even in the most demanding conditions.
Weichai Engine
The machine is powered by an efficient Weichai WP4.6NG135F670 diesel engine, delivering 135 hp (99 kW) at 2200 rpm. The unit complies with the EURO 5 emission standard while offering a high torque of 610 Nm at 1300–1500 rpm. With a displacement of 4.58 liters and 6 cylinders, the engine ensures smooth and economical operation even under heavy loads.
Hydraulics and Control
The hydraulic system, based on a gear pump, guarantees stable and efficient operation. A relief valve pressure of 16 MPa and a steering system valve pressure of 16.5 MPa ensure high precision. Short work cycle times – lifting in 5.8 s, dumping in 1.5 s, and lowering in 3.0 s – translate into fast and effective loading operations.
Drive and Transmission
The 4×4 drive and Power Shift transmission with a wet clutch provide excellent traction and driving smoothness. A single-stage, three-element torque converter allows for efficient power transfer. The loader reaches speeds of up to 35 km/h forward and 28 km/h in reverse, offering 4 forward gears and 3 reverse gears.
Work Performance
With an operating weight of 10,500 kg, the loader offers a rated lifting capacity of 3,500 kg, making it an ideal solution for handling heavy materials. The shortest total work cycle is only 10.3 seconds, significantly increasing operational efficiency.
Working Geometry
The GG035 offers a dumping height of 3152 mm and a maximum hinge pin height of 4137 mm. A dumping reach of 1385 mm enables precise loading. The dump angle at full height is 38°, which facilitates easy emptying of the bucket.
